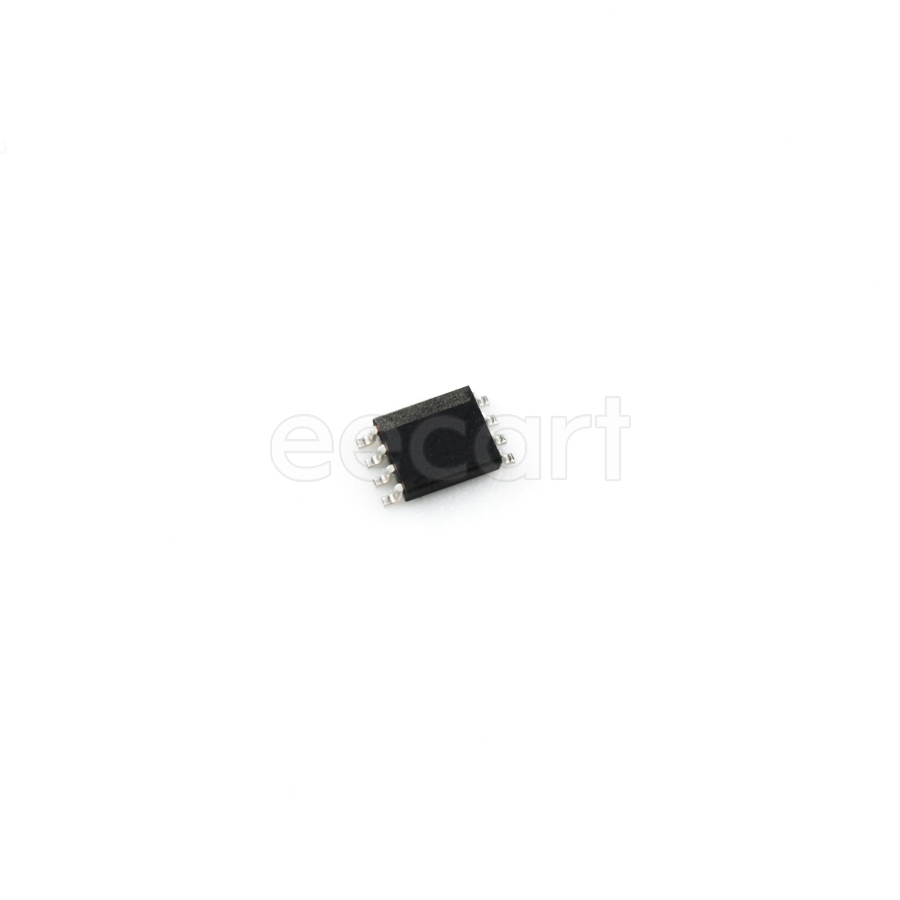

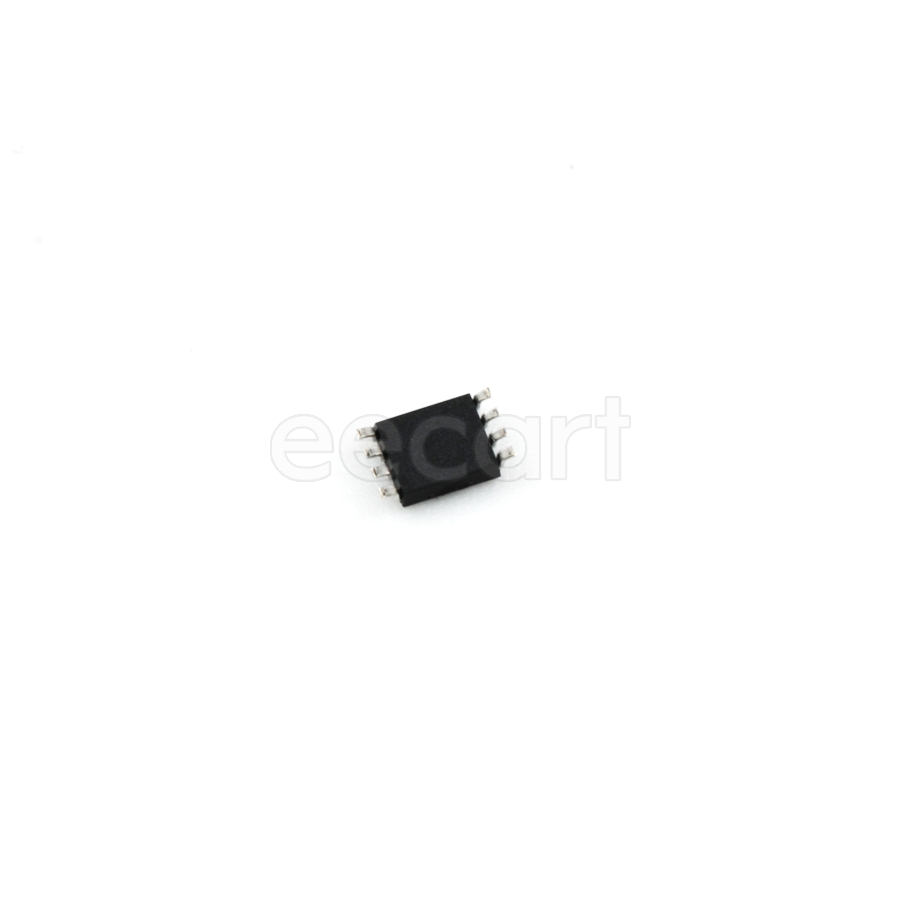

NC7WZ241K8X
Manufacturer:
On Semiconductor
Mfr.Part #:
NC7WZ241K8X
Datasheet:
Description:
Buffers, Drivers, Resceivers and Transceivers US8 SMD/SMT 3-State
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 2.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 700 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| REACH SVHC | No SVHC |
| Weight | 0.03 g |
| Number of Elements | 2 |
| Number of Circuits | 2 |
| Output Type | 3-State |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 250 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.65 V |
| Number of Channels | 2 |
| Number of Bits | 2 |
| Turn-On Delay Time | 13 ns |
| Operating Supply Current | 1 µA |
| Quiescent Current | 1 µA |
| Propagation Delay | 15 ns |
| High Level Output Current | -32 mA |
| Low Level Output Current | 32 mA |
| Logic Function | Buffer, Inverting |
| Number of Inputs | 2 |
| Number of Bits per Element | 1 |
| Number of Outputs | 3 |
| Number of Input Lines | 2 |
| Number of Output Lines | 3 |
| Schmitt Trigger Input | No |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Logic Family | TinyLogic UHS |
Stock: 1159
Distributors
pcbx
pcbxUnit Price$0.19407
Ext.Price$0.19407
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19407 | $0.19407 |
| 10 | $0.13337 | $1.33370 |
| 50 | $0.11649 | $5.82450 |
| 100 | $0.10174 | $10.17400 |
| 500 | $0.09308 | $46.54000 |
| 1000 | $0.08515 | $85.15000 |
| 3000 | $0.07763 | $232.89000 |
| 5000 | $0.07603 | $380.15000 |
| 10000 | $0.07447 | $744.70000 |
